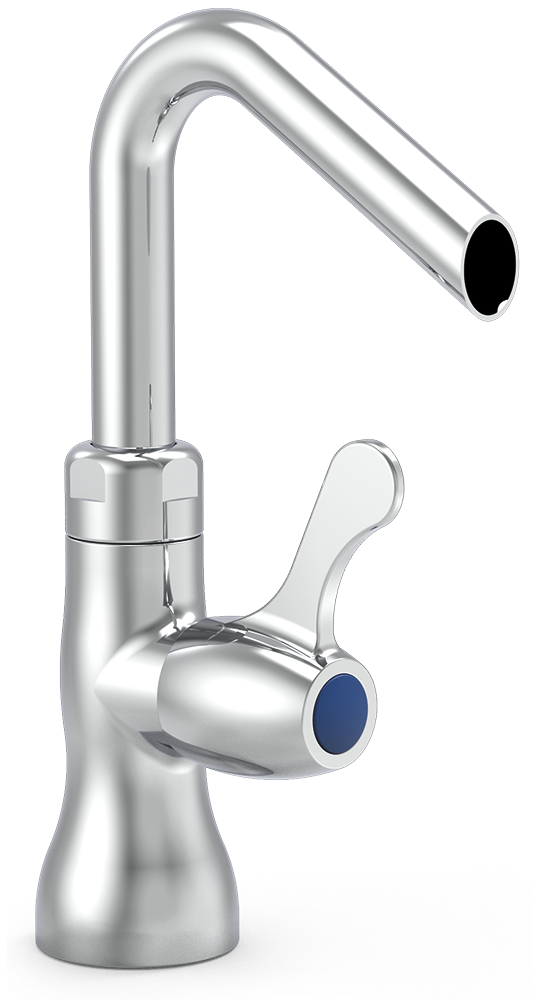

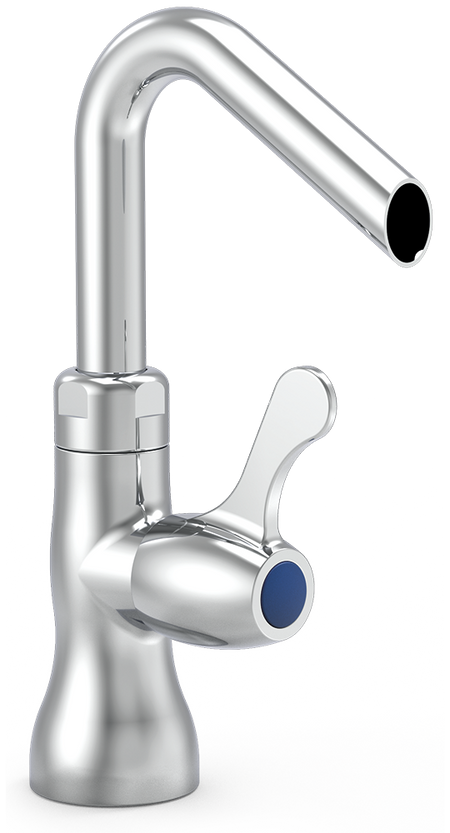

Single-water tap, 1/4 turn, short spout

This single-water deck-mounted tap with 1/4 turn lever and short spout provides a compact cold water point for small bowls and sinks. Its 100 mm spout directs the water downwards, close to the bowl.

Main features

• Material: chrome-plated brass.
• Control: one 1/4 turn lever.
• Spout: short, angled downwards, swivelling, 100 mm reach.
• Installation: deck-mounted, single hole, 1/2" threaded connection.

Recommended use

Cold water point for small bowls and sinks:

• Commercial kitchens and institutional catering.
• Pot wash and warewashing areas.
• Food processing industry and laboratories.
• Food retail and supermarkets.

Additional benefits

• Compact: 100 mm reach, suited to small bowls.
• Quick operation: fully open in a quarter turn.
• Simple installation: only one water inlet to connect.

Technical specifications

• Dimensions (L spout reach × H spout outlet height × h overall height): 100 × 145 × 200 mm.
• Connection: 1/2" threaded.
• Supply: cold water.
• Flow rate: 22 l/min.
• Material: chrome-plated brass.
• Net weight: 1.20 kg.
• Warranty: 2 years.
