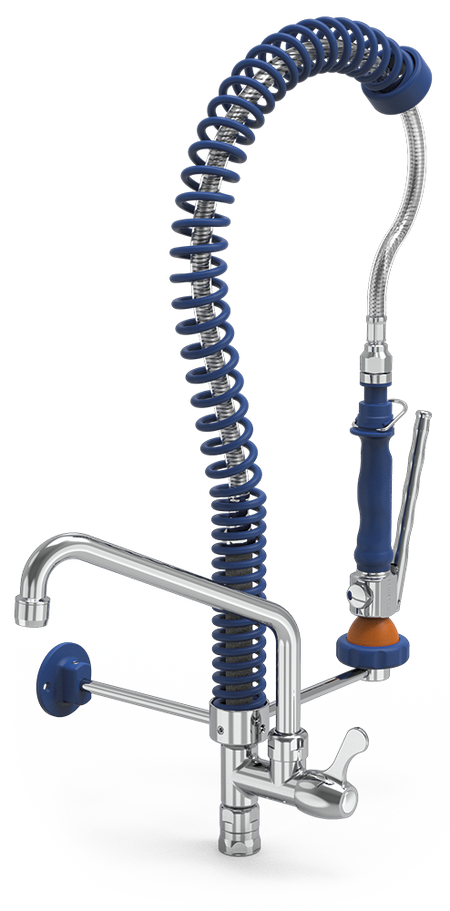

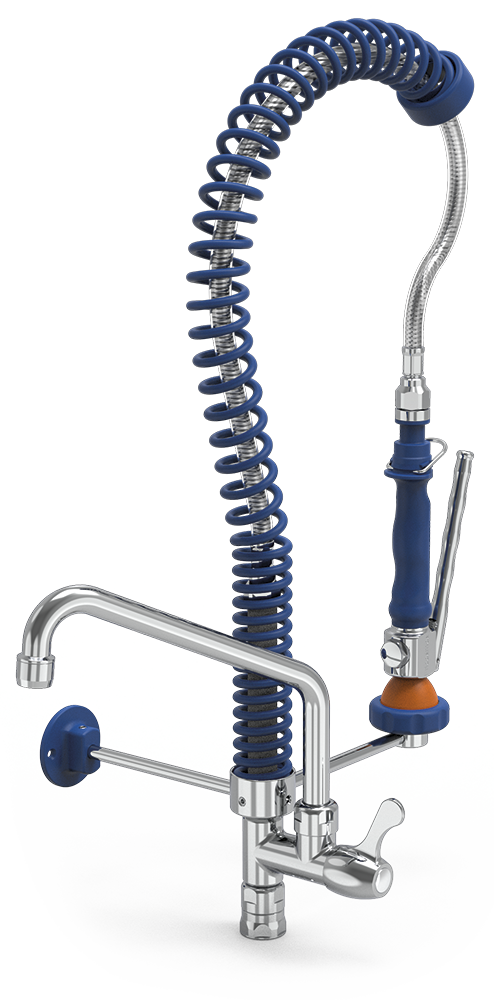

Extra low pre-rinse spray tap with spout basic model

The extra-low pre-rinse spray tap with swan neck, Série Basic combines a 600 mm footprint with a deliberately simple design: with no shut-off valve on the body, the water opens and closes at the gun lever.

Key features

• Water supply: single water.
• Control: opening and closing at the spray gun lever, with no shut-off valve on the body.
• Spout: articulated swan neck with a selector to direct the water either to the spray head or to the spout.
• Spray head: lever-operated rinsing gun with a hold-open mechanism. Watch the spray gun in action.
• Installation: deck-mounted, single hole, with wall support bracket.

Recommended use

Designed for low-clearance rinsing stations where what matters is an immediate jet.

• Professional sinks and washing areas
• Central kitchens and institutional catering
• Hotels and restaurants
• Food processing industry
• Supermarkets and food retail

Additional benefits

• Effective rinsing: the spray jet quickly lifts residue from dishes and containers.
• Hygiene: smooth, non-porous surfaces that trap no soiling.
• Durability: robust build suited to heavy daily use.
• Easy maintenance: quick to clean, with no special products required.

Investing in this pre-rinse spray tap means a durable, hygienic and high-performing solution for any professional washing station.

Technical specifications

• Overall dimensions: 450 mm (length) × 600 mm (height).
• Connections: 1/2".
• Flow rate: 17 l/min.
• Maximum working pressure: 5 bar.
• Maximum supply temperature: 80 °C.
• Material and finish: chrome-plated brass.
• Net weight: 4.9 kg.
• Packaging: 1 unit per box (830 × 360 × 70 mm).
• Warranty: 2 years.
