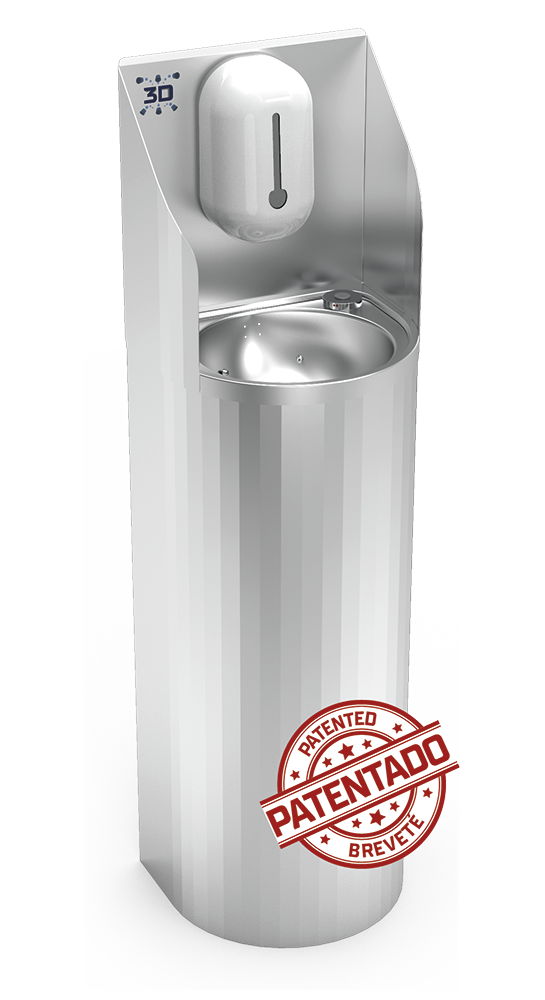

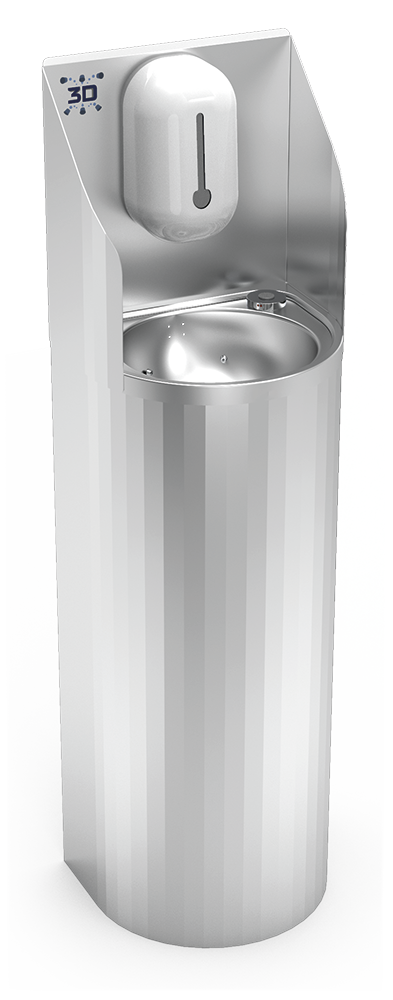

Electronic 3D hand washbasin

The freestanding stainless steel 3D electronic hand wash basin carries over the patented design with no gooseneck spout: water comes out through multiple points spread across the bowl surface, angled to wash both hands in a single motion, on a floor-standing column.

Key features

• Material: stainless steel, fully welded assembly.
• Patented 3D system: no gooseneck. Multiple pre-mixed water outlets, spread and angled across the bowl, wash the hands evenly with no need to move them around.
• Control: electronic sensor activation, water and soap both touch-free.
• Automatic soap dispenser: built in and factory-fitted.
• Anti-splash panels: welded at the back and along the sides, in a semi-wraparound configuration.
• Rounded design: no sharp corners or protruding parts.
• Installation: floor-standing against a wall, connected to the water supply and to a waste outlet. Delivered factory-assembled with its standard connection fittings.

Recommended use

Designed for high-traffic washing points where wash quality and the absence of cross-contamination are decisive.

• Hospitals, clinics and laboratories
• Food industry and hygiene airlocks
• Professional kitchens and public institutions
• Retail spaces and public-facing areas

Additional benefits

• Faster, more even washing: the multiple jets cover the whole hand from the start, with no hunting around under a spout.
• No cross-contamination: water and soap are both triggered without contact.
• Water savings: the shorter wash time cuts consumption appreciably.
• Free positioning: the freestanding version needs no wall support and goes wherever the flow of people requires.

Investing in this freestanding hand wash basin means a sturdy, genuinely hygienic solution that fits visually into any professional environment.

Restrictions and warnings

• Not a self-contained unit: it has no tank and no pump, and must be connected to the mains water supply and to a waste outlet.
• Intended exclusively for hand washing.

Technical specifications

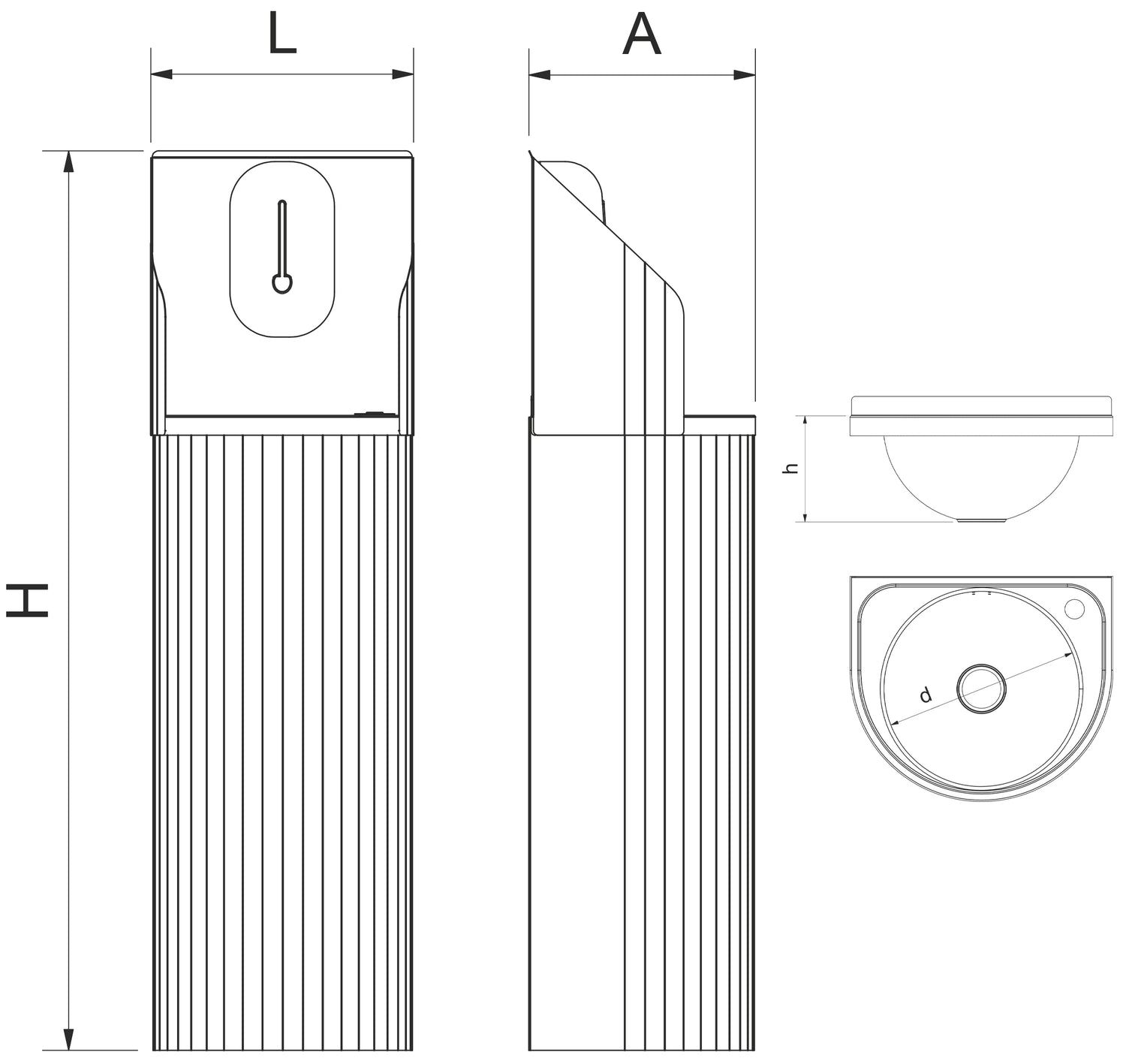

• Overall dimensions: 352 mm (length) × 303 mm (width) × 1205 mm (height).
• Bowl: Ø 260 mm, 115 mm deep.
• Flow rate: 14 l/min.
• Material: stainless steel.
• Water type: pre-mixed, with a non-return mixing valve for temperature setting.
• Power supply: 4 AA batteries (not included).
• Anti-splash panels and automatic soap dispenser: included, factory-fitted.
• Freestanding version; wall-mounted version available under ref. 061482.
• Net weight: 9.5 kg.
• Warranty: 2 years.
